Voltage Rating: 11KV / 15KV
Insulator: Composite Polymer
Type: Solid core DO Fuse Insulator/ Cut out Fuse Insulator
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Nominal System Voltage | 11 kV |
| Highest System Voltage | 15 kV |
| System Frequency | 50 Hz |
| Rated Currant | 100/ 200 Amp |
| Creepage Distance | 320mm |
| Power Frequency Withstand Voltage - Dry | 45 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 35 kV (rms) |
| Impulse Voltage | 55 kVp. |
| Standard | IEC 61109 / IEC 60282 |

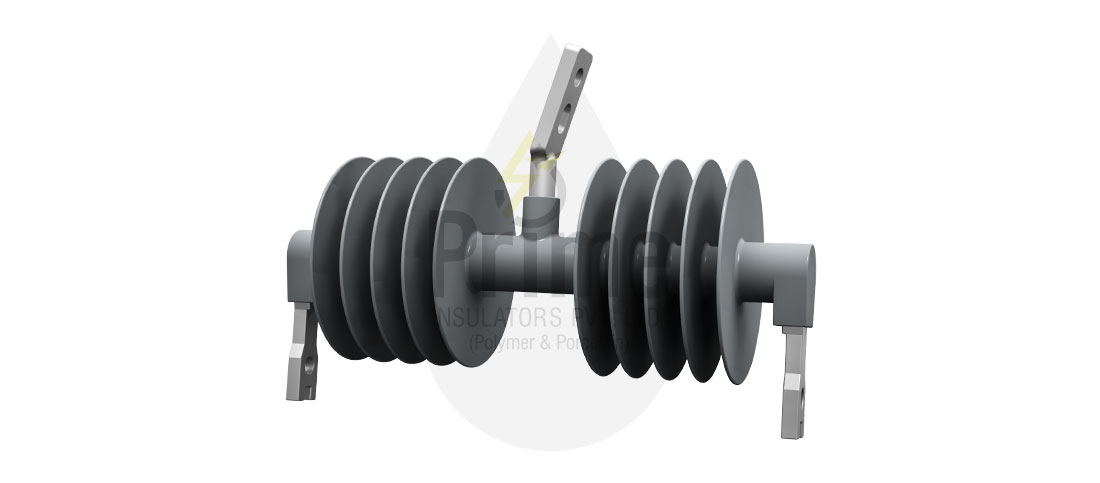

Voltage Rating: 22KV / 26KV
Insulator: Composite Polymer
Type: Solid core DO Fuse Insulator/ Cut out Fuse Insulator
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Nominal System Voltage | 22 kV |
| Highest System Voltage | 26 kV |
| System Frequency | 50 Hz |
| Rated Currant | 100/ 200 Amp |
| Creepage Distance | 600mm |
| Power Frequency Withstand Voltage - Dry | 60 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 45 kV (rms) |
| Impulse Voltage | 75kVp. |
| Standard | IEC 61109 / IEC 60282 |

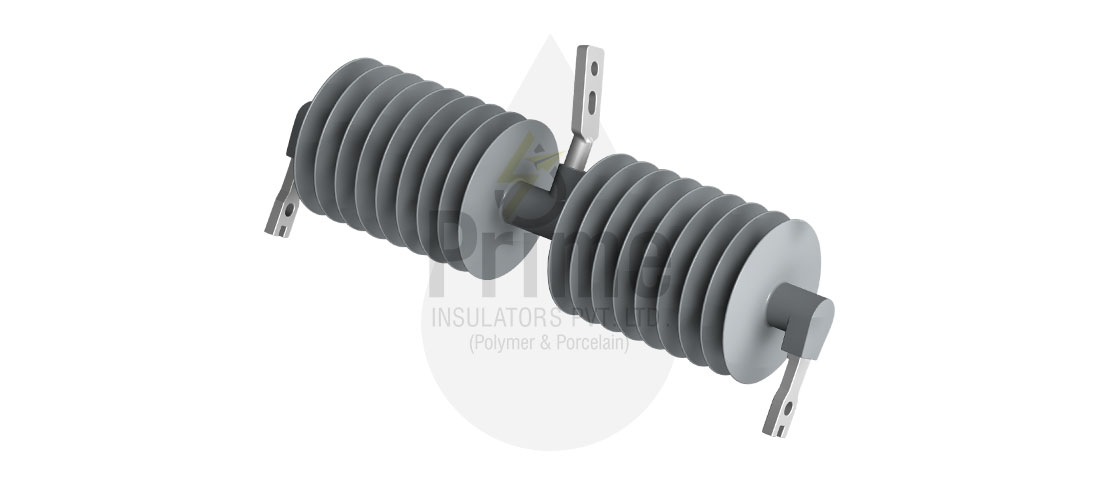

Voltage Rating: 33KV / 36KV
Insulator: Composite Polymer
Type: Solid core DO Fuse Insulator/ Cut out Fuse Insulator
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Nominal System Voltage | 33 kV |
| Highest System Voltage | 36 kV |
| System Frequency | 50 Hz |
| Rated Currant | 100/ 200 Amp |
| Creepage Distance | 900mm / 1050mm |
| Power Frequency Withstand Voltage - Dry | 90 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 70kV (rms) |
| Impulse Voltage | 170kVp. |
| Standard | IEC 61109 / IEC 60282 |
