Voltage Rating: 15KV / 28KV/ 36kV
Insulator: Composite Polymer Post Insulator

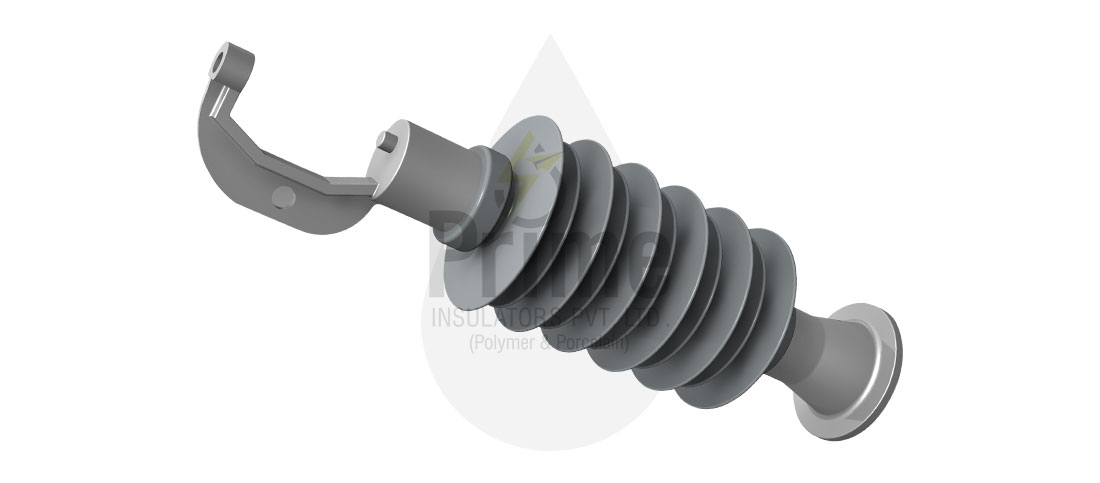

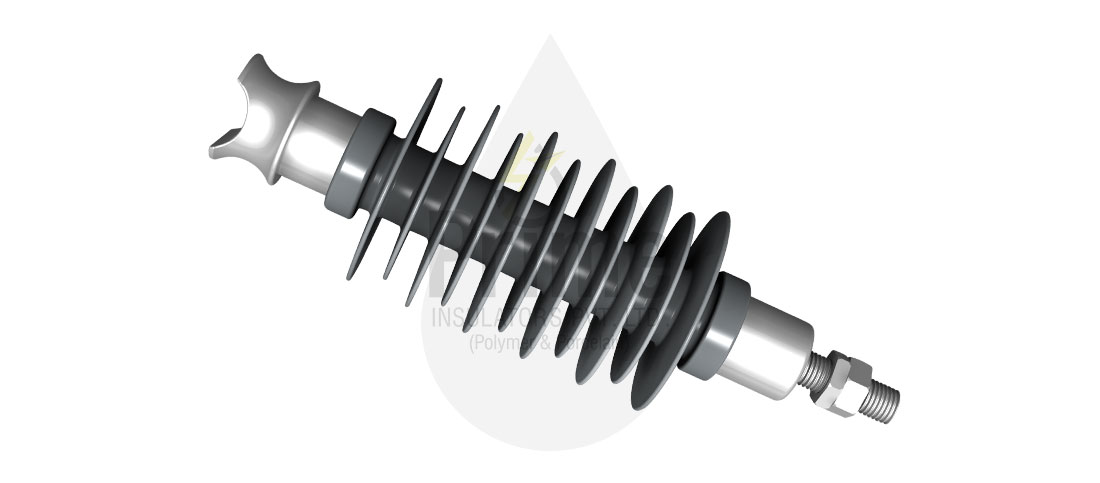

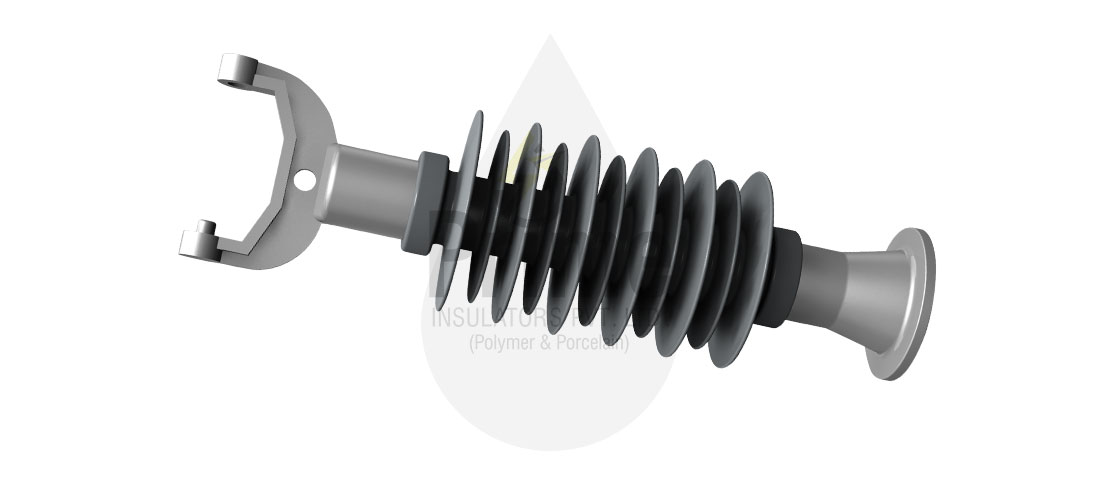

Type: Horizontal / Vertical/ Tie Top/ Station Post
Minimum Failing Load: 05KN to 16KN
| System Parameters | 12KV-15KV | 22KV-28KV | 33KV-36KV |
|---|---|---|---|
| Nominal System Voltage | 12KV | 22KV | 33 KV |
| Highest System Voltage | 15KV | 28KV | 36 KV |
| System Frequency | 50 Hz | 50 Hz | 50 Hz |
| Creepage Distance | 300 to 450mm | 600 to 780mm | 900 to 1350 mm |
| Power Frequency Withstand Voltage - Dry | 70 kV (rms) | 110 kV (rms) | 130 kV (rms) |
| Power Frequency Withstand Voltage - Wet | 45 kV (rms) | 70 kV (rms) | 90 kV (rms) |
| Impulse Voltage | 110 kV (rms) | 150 kV (rms) | 230 kV (rms) |
| Standard | IEC 62231/ IEC 60815 | IEC 62231/ IEC 60815 | IEC 62231/ IEC 60815 |
