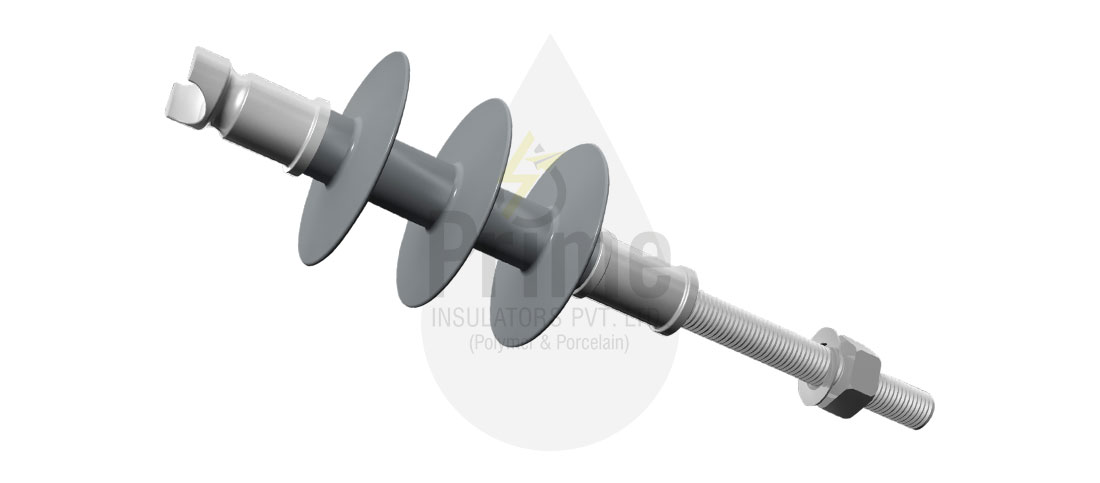

Voltage Rating: 11KV / 15KV
Insulator Type: Composite Polymer Pin Insulator
FRP Rod Diameters: Ø24mm/ Ø33.5mm
Minimum Failing Load: 05KN/ 10KN/ 12.5KN
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Nominal System Voltage | 11 kV |
| Highest System Voltage | 15 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 320mm /400 mm |
| Power Frequency Withstand Voltage - Dry | 60 kV (rms) |
| Power Frequency Withstand Voltage- Wet | 45 kV (rms) |
| Impulse Voltage | 75 kVp. |
Voltage Rating: 11KV / 15KV

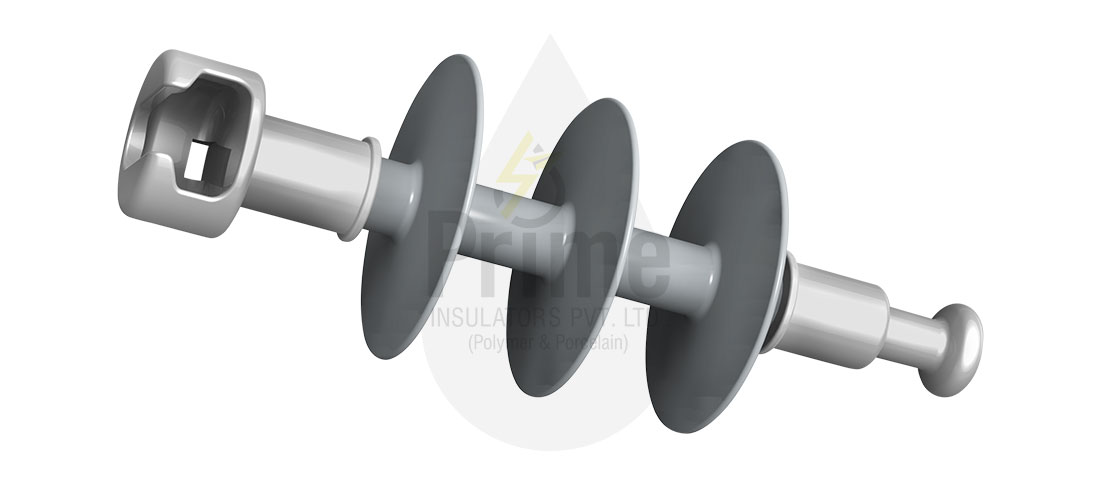

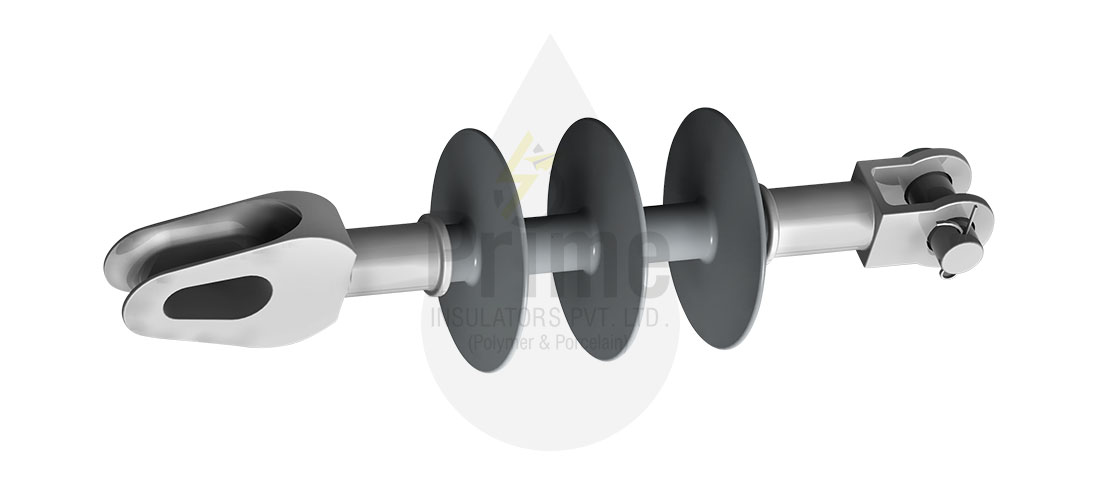

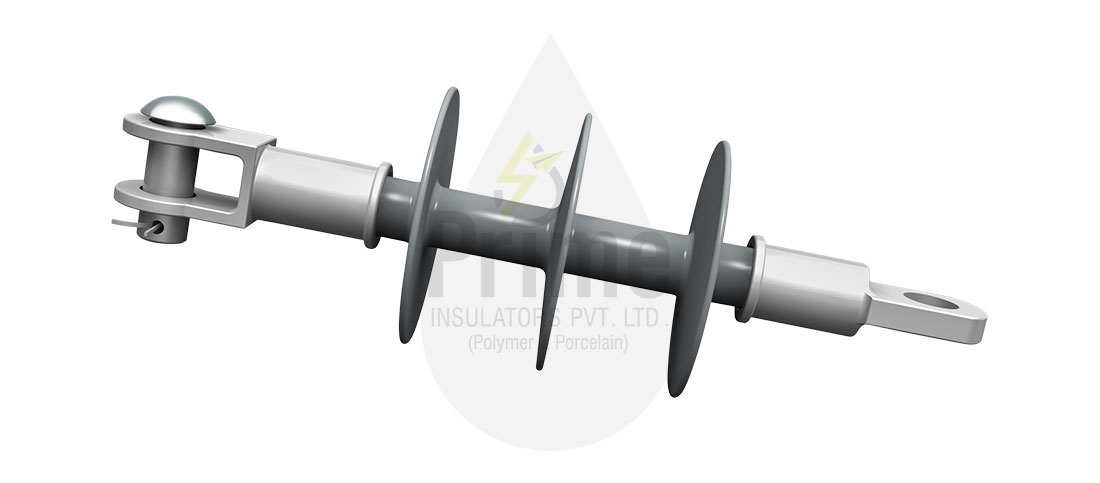

Type of Insulator: Composite Polymer Disc (Suspension/ Tension) Insulator
Type of End Fittings: Ball & Socket (B&S)/ Tongue & Clevis (T&C)/ Dead End
FRP Rod Diameters: Ø16mm/ Ø18mm/ Ø20mm
Minimum Failing Load: 45KN/ 70KN/ 90KN
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Nominal System Voltage | 11 kV |
| Highest System Voltage | 15 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 320mm /450 mm |
| Power Frequency Withstand Voltage - Dry | 60 kV (rms) |
| Power Frequency Withstand Voltage- Wet | 45 kV (rms) |
| Impulse Voltage | 75 kVp. |
Voltage Rating: 11KV / 12KV

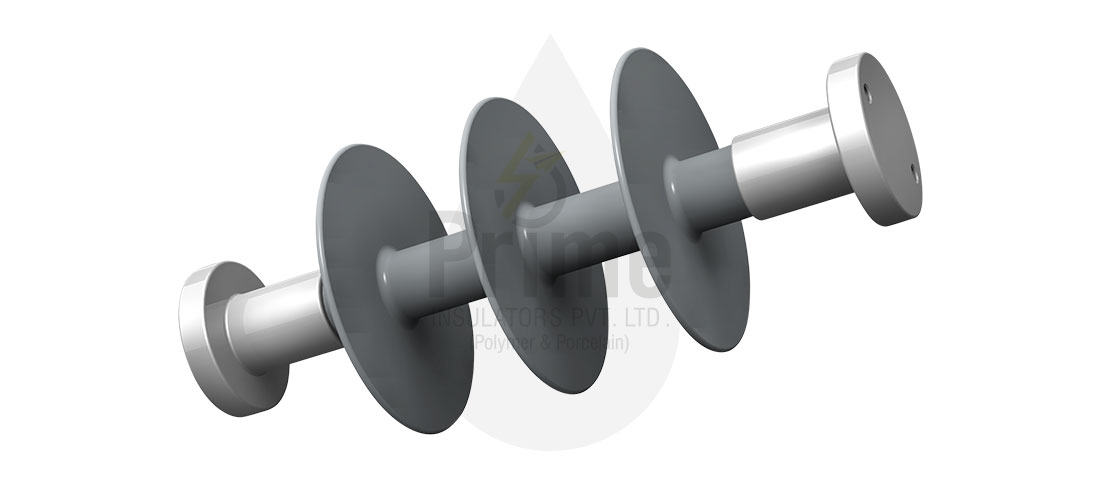

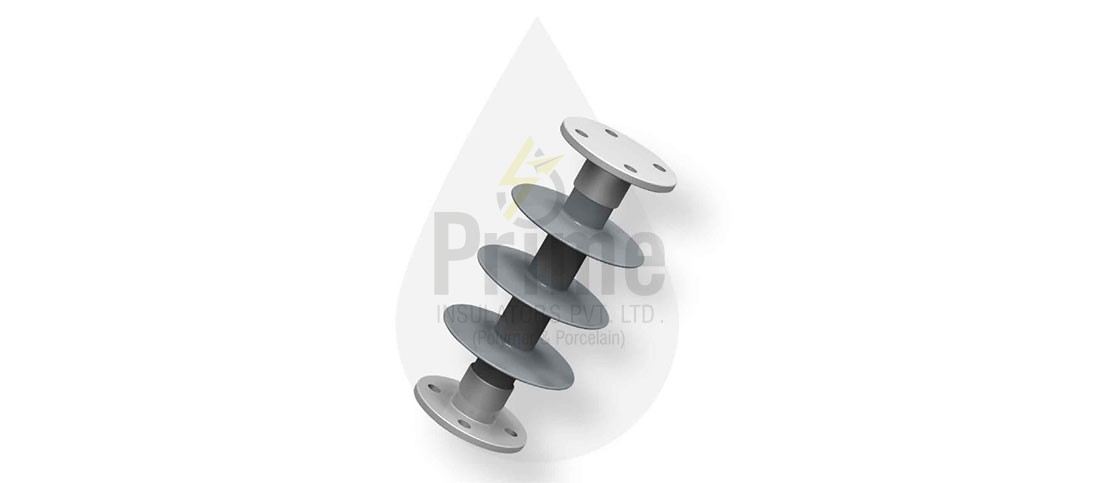

Insulator Type: Composite Polymer Solid coreInsulator
FRP Rod Diameters: Ø16mm
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Nominal System Voltage | 11 kV |
| Highest System Voltage | 15 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 320 mm / 600mm |
| Power Frequency Withstand Voltage - Dry | 60 kV (rms) |
| Power Frequency Withstand Voltage- Wet | 45 kV (rms) |
| Impulse Voltage | 75 kVp. |
Voltage Rating: 11KV / 15KV
Insulator Type: Composite Polymer Post Insulator
FRP Rod Diameters: Ø24 mm /Ø33.5mm,
Minimum Failing Load: 05KN to10KN
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Nominal System Voltage | 11 kV |
| Highest System Voltage | 12 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 320 mm / 450 mm |
| Power Frequency Withstand Voltage - Dry | 60 kV (rms) |
| Power Frequency Withstand Voltage- Wet | 45 kV (rms) |
| Impulse Voltage | 75 kVp. |
| Pitch Circle Diameter (PCD) | 57/ 76 mm |
| Height | 254 mm / as per customer requirement |
| Standard | IEC 61109 / IEC 62217 / IEC 62231 |
Voltage Rating: 22KV / 24KV

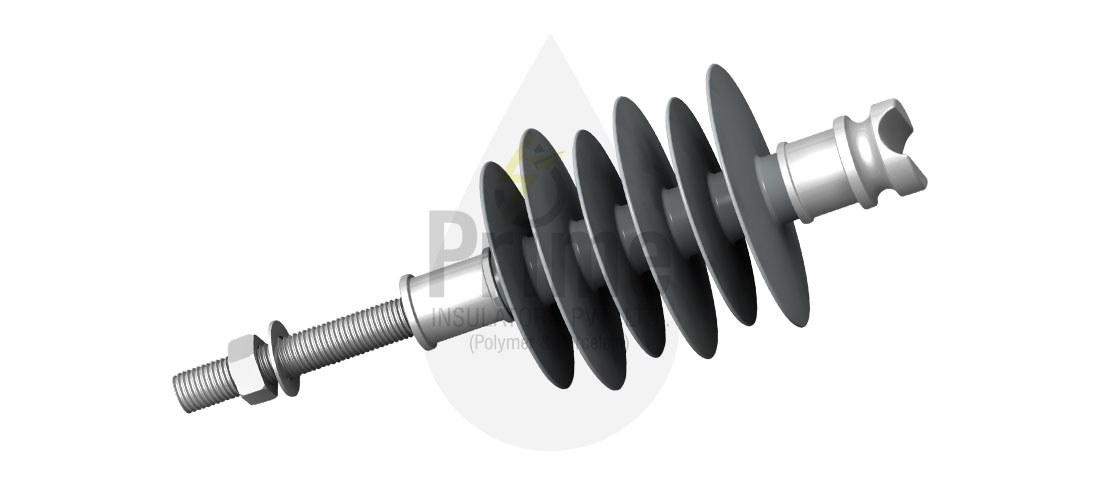

Insulator Type: Composite Polymer Pin Insulator
FRP Rod Diameters: Ø24mm/ Ø33.5mm/ Ø38mm
Minimum Failing Load: 05KN/ 10KN/ 12.5KN
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Nominal System Voltage | 22 kV |
| Highest System Voltage | 24 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 600 mm / 700mm |
| Power Frequency Withstand Voltage - Dry | 90 kV (rms) |
| Power Frequency Withstand Voltage- Wet | 70 kV (rms) |
| Impulse Voltage | 150kVp. |
| Standard | IEC 61109 / IEC 62217 |
Voltage Rating: 22KV / 24KV

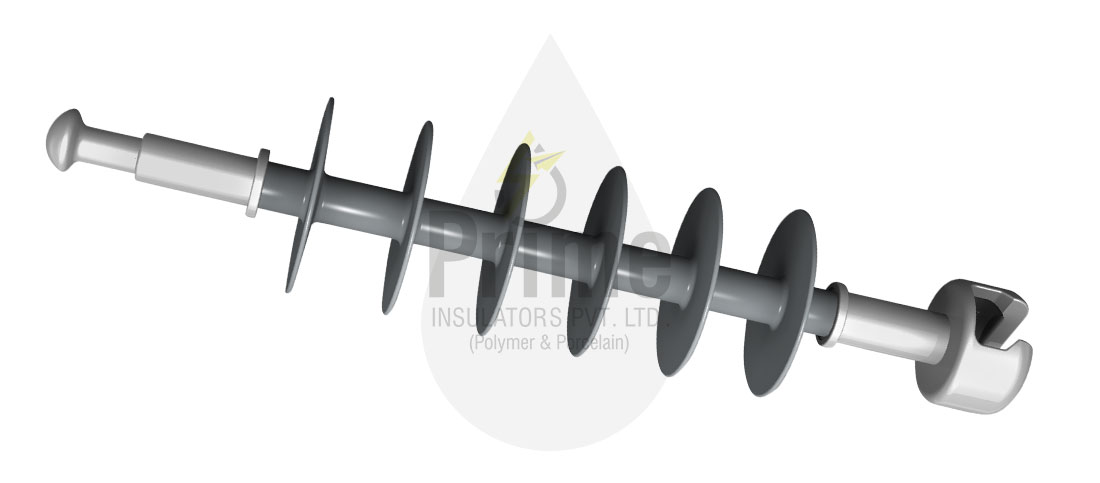

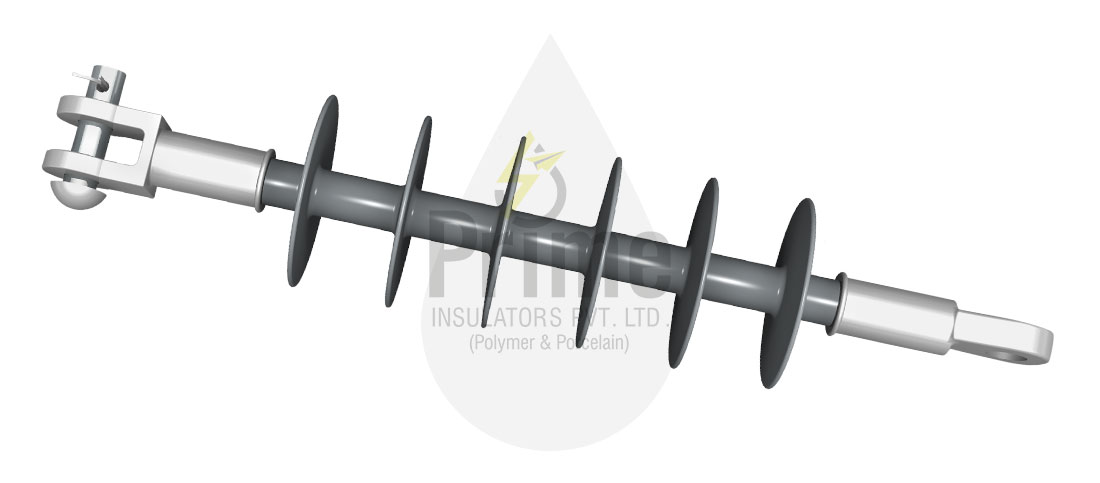

Insulator Type: Composite Polymer Disc (Suspension/ Tension) Insulator
Type of End Fittings: Ball & Socket (B&S)/ Tongue & Clevis (T&C)
FRP Rod Diameters: Ø16mm/ Ø18mm/ Ø20mm
Minimum Failing Load: 45KN/ 70KN/ 90KN
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Nominal System Voltage | 22 kV |
| Highest System Voltage | 24 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 600 mm / 700mm |
| Power Frequency Withstand Voltage - Dry | 90 kV (rms) |
| Power Frequency Withstand Voltage- Wet | 70 kV (rms) |
| Impulse Voltage | 150kVp. |
| Standard | IEC 61109 / IEC 62217 |
Voltage Rating: 22KV / 24KV

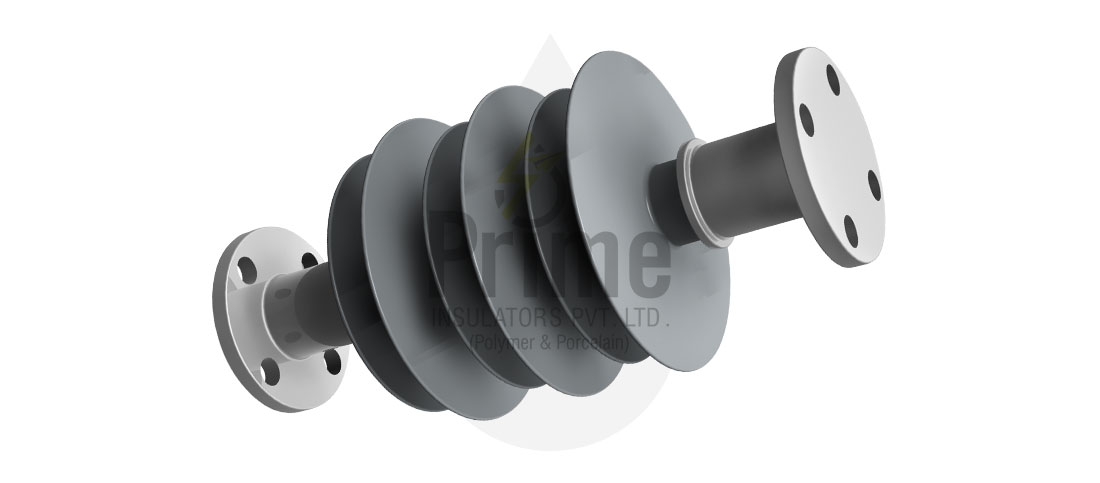

Insulator Type: Composite Polymer Post Insulator
FRP Rod Diameters: Ø24 mm /Ø33.5mm,
Minimum Failing Load: 05KN to10KN
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Nominal System Voltage | 22 kV |
| Highest System Voltage | 24 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 400 mm / 600mm |
| Power Frequency Withstand Voltage - Dry | 90 kV (rms) |
| Power Frequency Withstand Voltage- Wet | 70 kV (rms) |
| Impulse Voltage | 150kVp. |
| Pitch Circle Diameter (PCD) | 57/ 76 mm |
| Height | 254 mm to 450 mm |
| Standard | IEC 61109 / IEC 62217 / IEC 62231 |

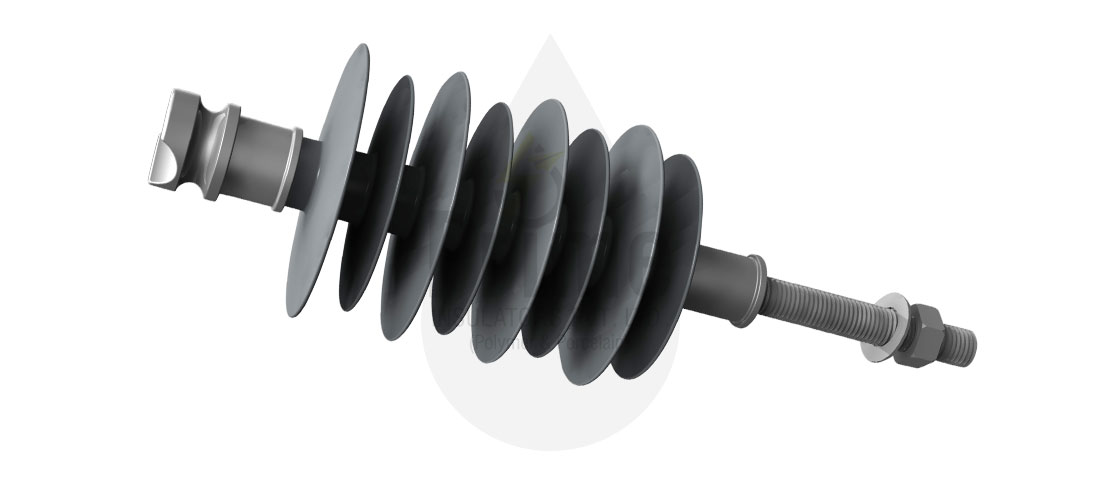

Voltage Rating: 33KV / 36KV

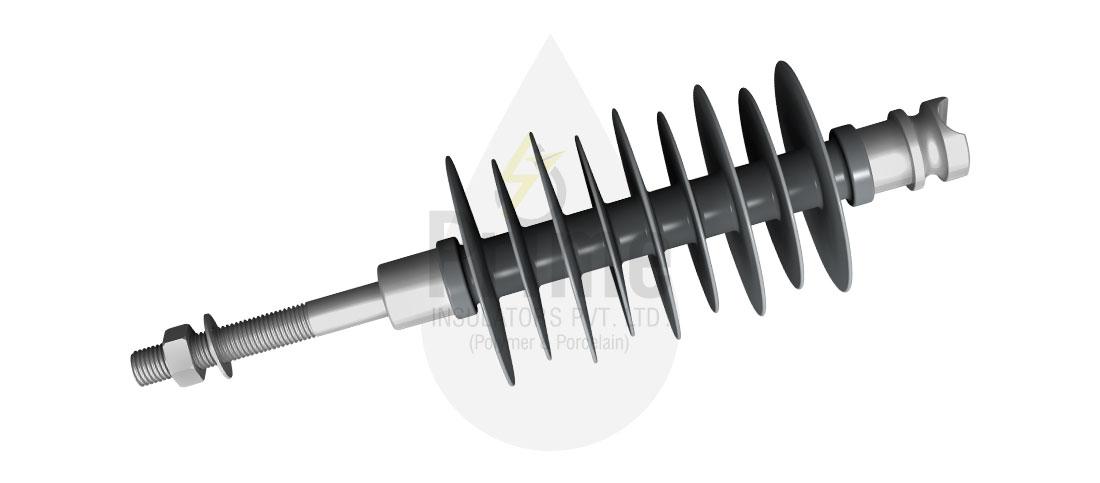

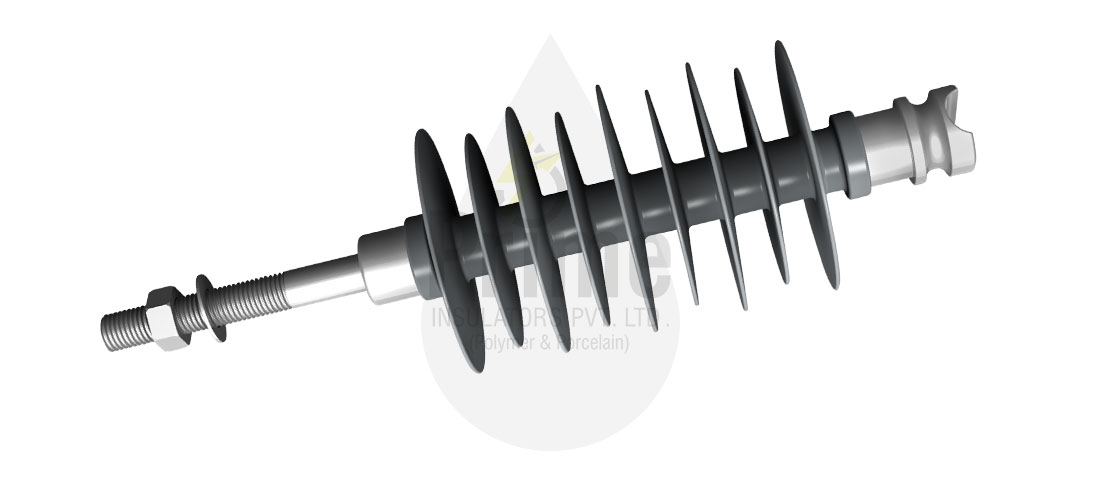

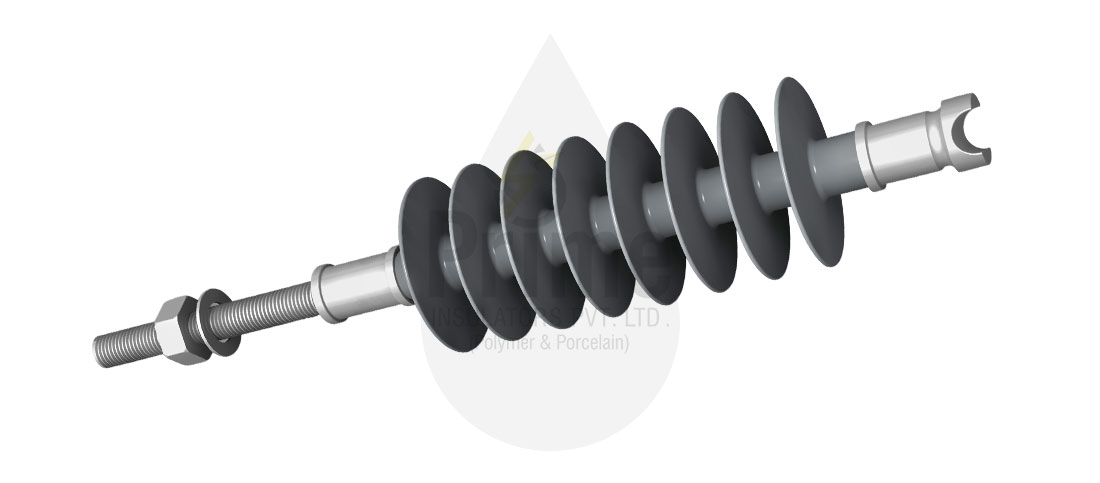

Insulator Type: Composite Polymer Pin Insulator
FRP Rod Diameters: Ø24mm/ Ø33.5mm / Ø38mm
Minimum Failing Load: 05KN/ 10KN/ 12.5KN
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Nominal System Voltage | 33 kV |
| Highest System Voltage | 36 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 900 to 1300 mm |
| Power Frequency Withstand Voltage - Dry | 130 kV (rms) |
| Power Frequency Withstand Voltage- Wet | 90 kV (rms) |
| Impulse Voltage | 230kVp. |
| Standard | IEC 61109 / IEC 62217 |
Voltage Rating: 33KV / 36KV

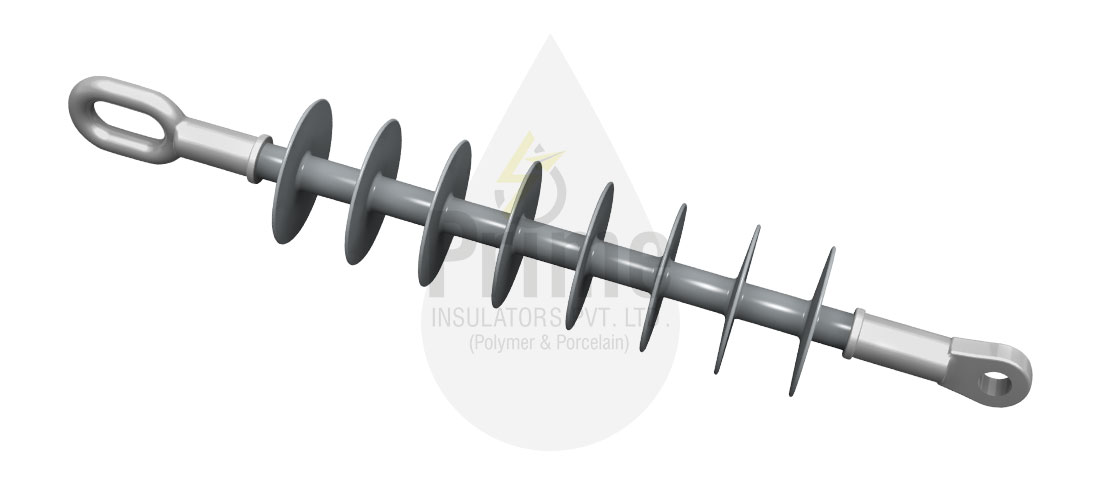

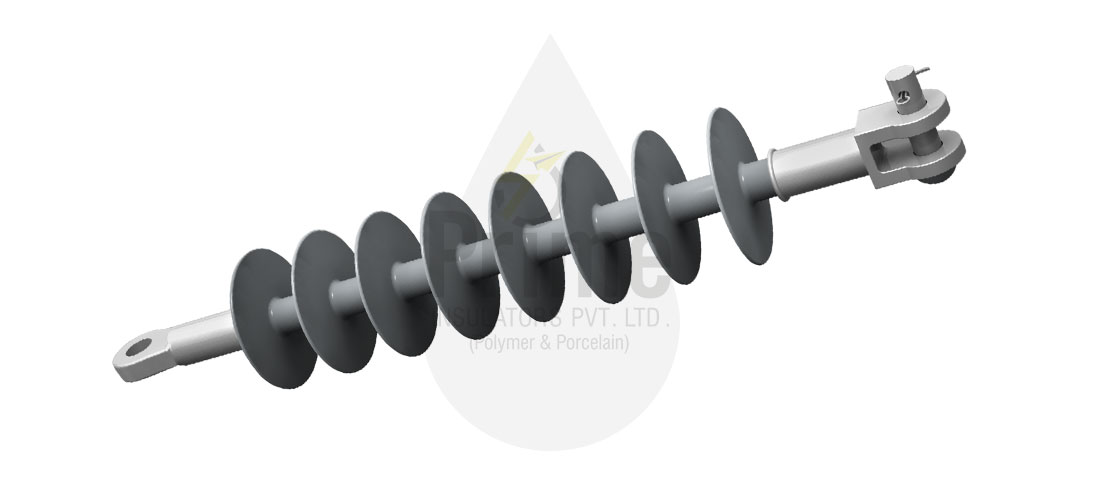

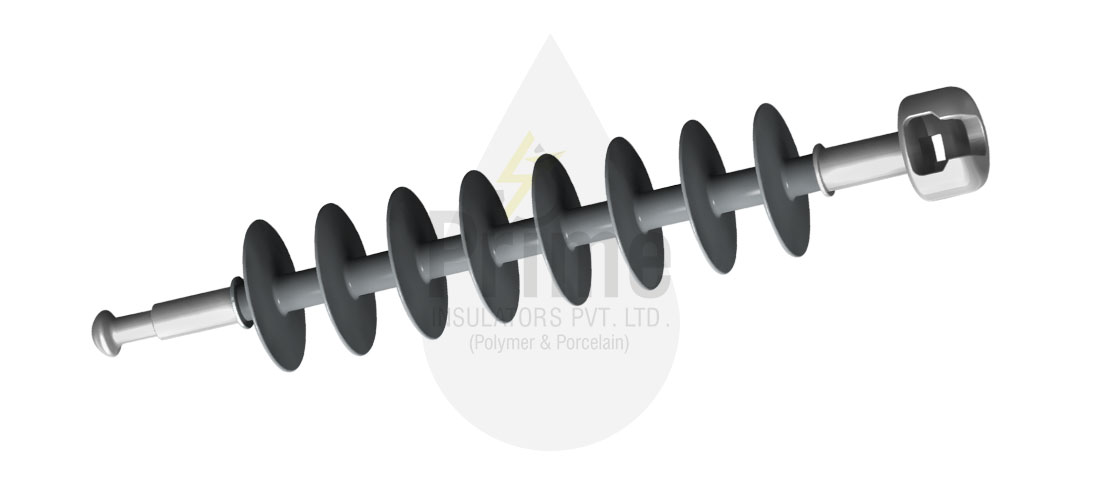

Insulator Type: Composite Polymer Disc (Suspension/ Tension) Insulator
Type: Ball & Socket (B&S)/ Tongue & Clevis (T&C)/ Eye & Tongue (E&T)
FRP Rod Diameters: Ø16mm/ Ø18mm/ Ø20mm /Ø24mm
Minimum Failing Load: 45KN/ 70KN/ 90KN / 120KN
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Nominal System Voltage | 33 kV |
| Highest System Voltage | 36 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 900 to 1300 mm |
| Power Frequency Withstand Voltage - Dry | 130 kV (rms) |
| Power Frequency Withstand Voltage- Wet | 90 kV (rms) |
| Impulse Voltage | 230kVp. |
| Standard | IEC 61109 / IEC 62217 |
Voltage Rating: 33KV / 36KV

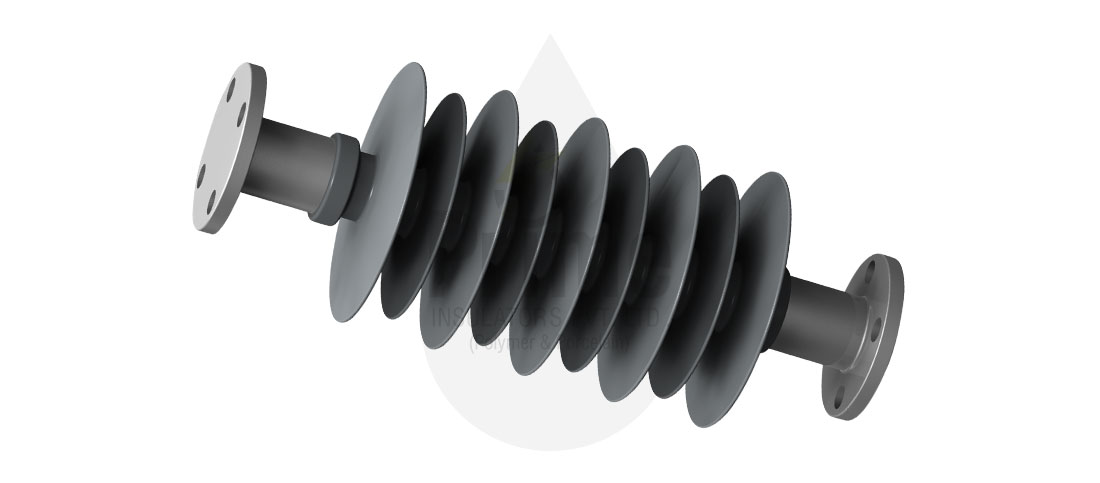

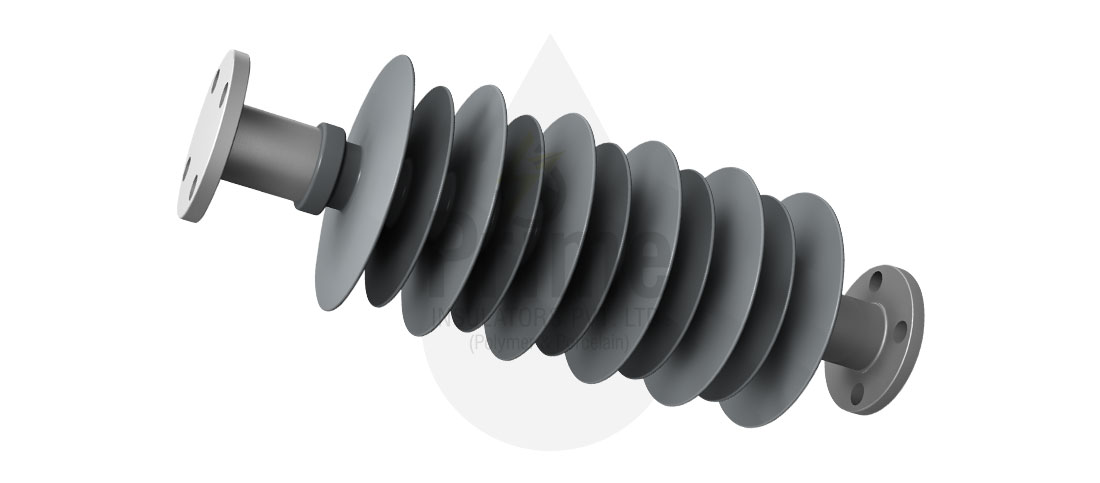

Insulator Type: Composite Polymer Post Insulator
FRP Rod Diameters: Ø24 mm /Ø33.5mm / Ø38mm
Minimum Failing Load: 05KN to 12KN
| MINIMUM STANDARD PARTICULARS | |
|---|---|
| Nominal System Voltage | 33 kV |
| Highest System Voltage | 36 kV |
| System Frequency | 50 Hz |
| Creepage Distance | 900 to 1300 mm |
| Power Frequency Withstand Voltage - Dry | 130 kV (rms) |
| Power Frequency Withstand Voltage- Wet | 90 kV (rms) |
| Impulse Voltage | 230kVp. |
| Pitch Circle Diameter (PCD) | 57mm / 76 mm |
| Height | 508 mm or as per customer requirement |
| Standard | IEC 61109 / IEC 62217 / IEC 62231 |
